Industry: Education

Stanford University/Huang Engineering Center

Industry:
Education
Location:
Palo Alto, California
Architect:
Boora Architects

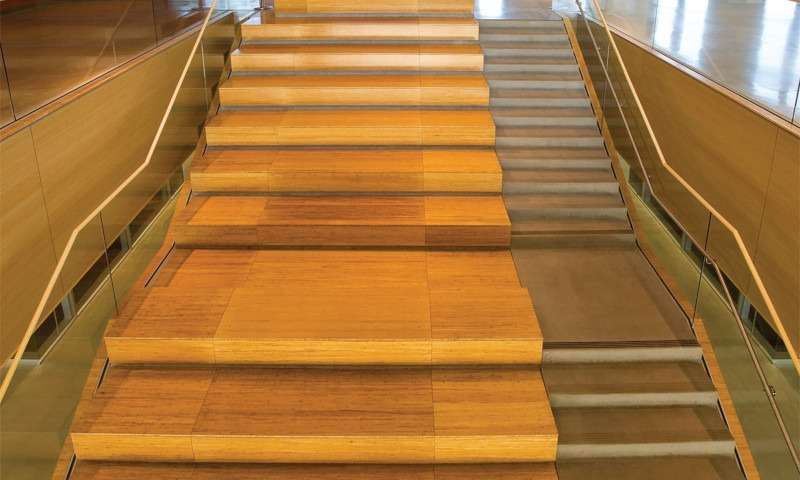

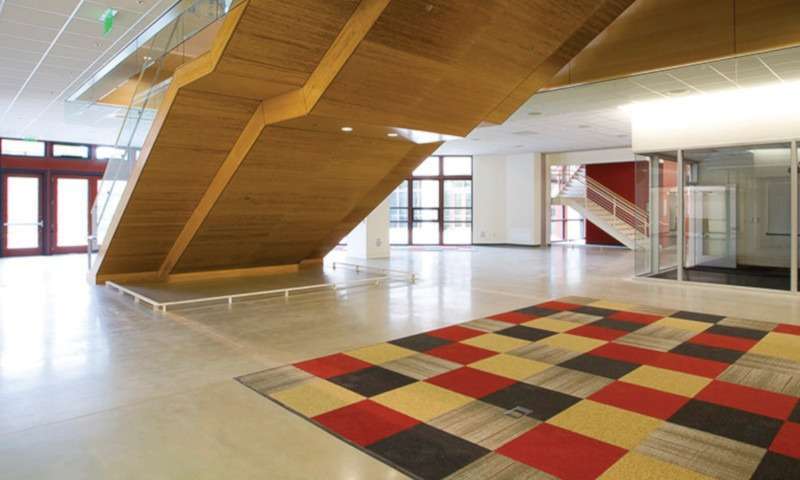

LEED Platinum is in the design for the new Huang Engineering Center at Stanford University. In this ambitious project, Plyboo strand and flat grain amber plywood were used. In addition to applications as stair tread platforms and under sheathing to the stair case, bamboo plywood was used for wall treatments and cabinetry. Formaldehyde-free and FSC were important as contributors to this LEED platinum project. Download Printable Version
Industry:
Education
Location:
Palo Alto, California
Architect:
Boora Architects
LEED Platinum is in the design for the new Huang Engineering Center at Stanford University. In this ambitious project, Plyboo strand and flat grain amber plywood were used. In addition to applications as stair tread platforms and under sheathing to the stair case, bamboo plywood was used for wall treatments and cabinetry. Formaldehyde-free and FSC were important as contributors to this LEED platinum project. Download Printable Version
Industry:
Education
Location:
Palo Alto, California
Architect:
Boora Architects
LEED Platinum is in the design for the new Huang Engineering Center at Stanford University. In this ambitious project, Plyboo strand and flat grain amber plywood were used. In addition to applications as stair tread platforms and under sheathing to the stair case, bamboo plywood was used for wall treatments and cabinetry. Formaldehyde-free and FSC were important as contributors to this LEED platinum project. Download Printable Version
Specifications

Materials

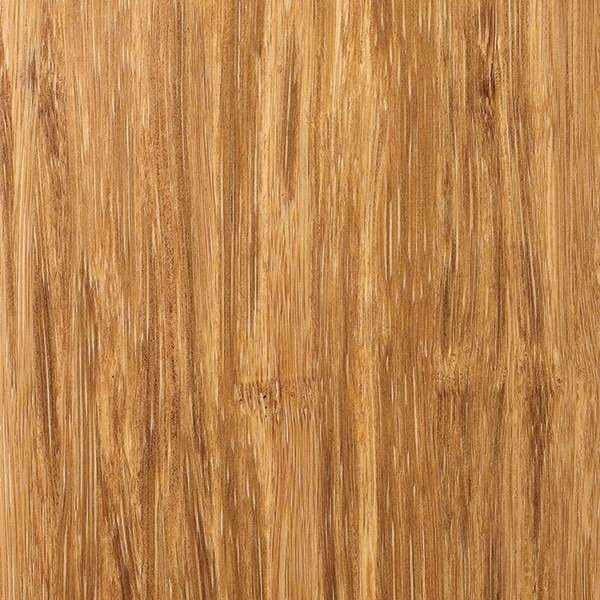

Sahara Strand Bamboo Plywood

Sahara Strand Bamboo Plywood

BP-4896PH-NAUF / FSC

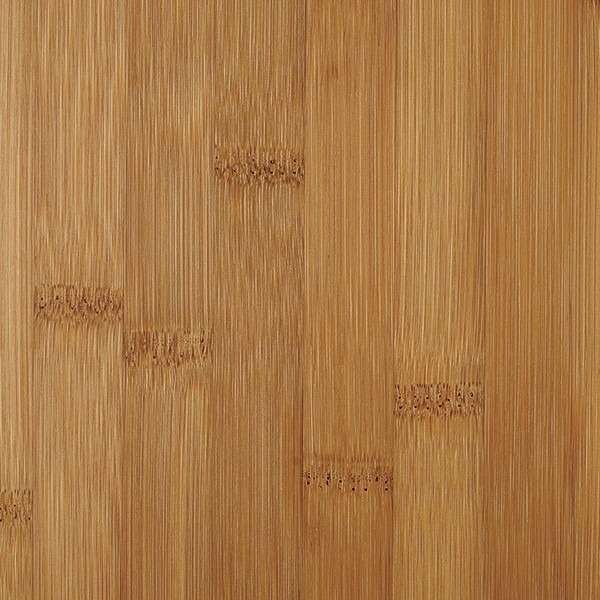

Amber Flat Grain Bamboo Plywood

Amber Flat Grain Bamboo Plywood

BP-4896A-NAUF / FSC

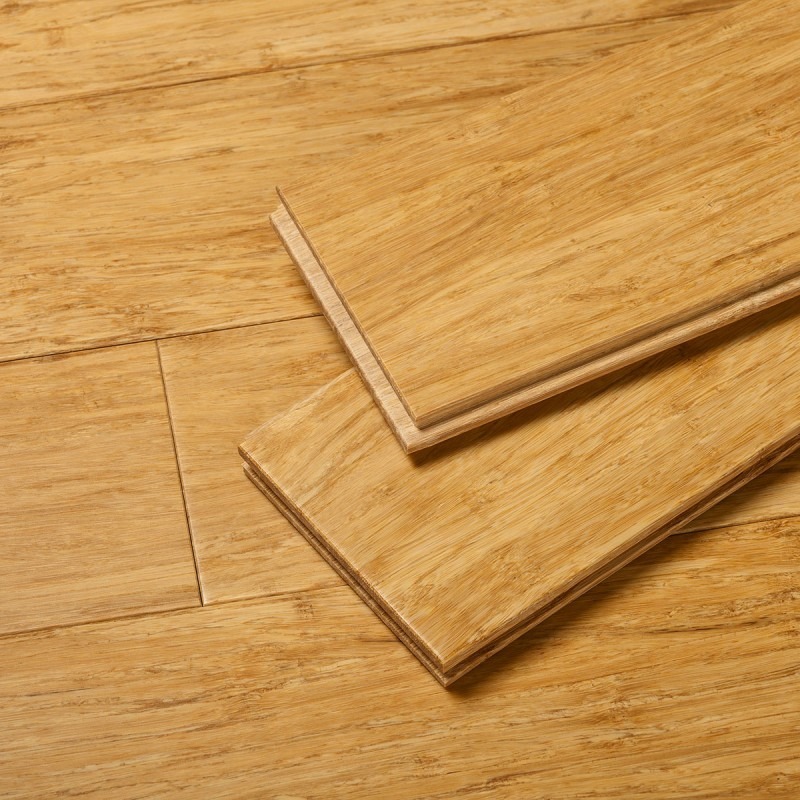

Sahara Strand Bamboo Flooring

Sahara Strand Bamboo Flooring

FL-P5872PH-NAUF / FSC

Possible LEED Credits:

Low emitting materials and certified wood
Floorscore Certified

Stanford University/Huang Engineering Center
Strand Bamboo Plywood

Dimensions:

3/4” x 48” x 96”
19mm x 1219mm x 2438mm (*mm tolerance +/- .5mm thickness)

Construction:

Three-ply, cross core construction.

Working with Plyboo:

A worksheet is provided with each panel containing useful tips and
information and is also available on our website at plyboo.com/
downloads.

ASTM E84: Surface Burning

Class C

ASTM D1037: Dimensional Stability

•Linear Expansion (3-ply): Parallel -0.09% / Perpendicular -0.07%
•Thickness Swell (3-ply): -0.3%
Screw Hold (3-ply) (face/back/edge)
• 1009lbs/ 681 lbs/ 516 lbs average

ASTM D4442: Moisture Content

6-9% average

ASTM D 6007-02: Formaldehyde Concentration in Air from Wood Products,
small chamber test

Plyboo = 0.004 ppm (surpasses CARB II standards, 0.05ppm &
ULEF standards of 0.04ppm)

Flat Grain Bamboo Plywood

Dimensions:

3/4” x 48” x 96”
19mm x 1219mm x 2438mm (*mm tolerance +/- .5mm thickness)

Construction:

Three-ply, cross core construction.

Working with Plyboo:

A worksheet is provided with each panel containing useful tips and
information and is also available on our website at plyboo.com/
downloads.

ASTM E84: Surface Burning

Class C

ASTM D1037: Dimensional Stability

•Linear Expansion (3-ply): Parallel -0.04% / Perpendicular -0.07%
•Thickness Swell (3-ply): -0.13%
Screw Hold (3-ply) (face/back/edge)
• 742 lbs/ 831 lbs/ 860 lbs average

ASTM D4442: Moisture Content

6-9% average

ASTM D 6007-02: Formaldehyde Concentration in Air from Wood Products,
small chamber test

Plyboo = 0.004 ppm (surpasses CARB II standards, 0.05ppm &
ULEF standards of 0.04ppm)

Strand Bamboo Flooring

Dimensions:

9/16” x 3 3/4” x 72” – 14mm x 96mm x 1830mm

Installation:

Tongue and Groove, glue down

ASTM E648:Critical Radiant Flux:

Class 1

ASTM D1037: Dimensional Stability

Linear Expansion: Parallel -0.02%, Perpendicular -0.23%, Thickness Swell -0.25%,
Hardness (Janka Ball Test): 3,500 lbf average

ASTM D2394: Coefficient of Friction

Static Coefficient / Dynamic (Sliding) Coefficient: 0.562 / 0.497

ASTM 4442: Moisture Content

6-9% average

ASTM D5116: Organic Emission
(CA Section 01350)

Classroom scenario/Office scenario: Pass/Pass
